Kim Pesko, Chatt Hills, Georgia
Found More Storage!
2017 RAM 1500
2019 Palomino SS-1240

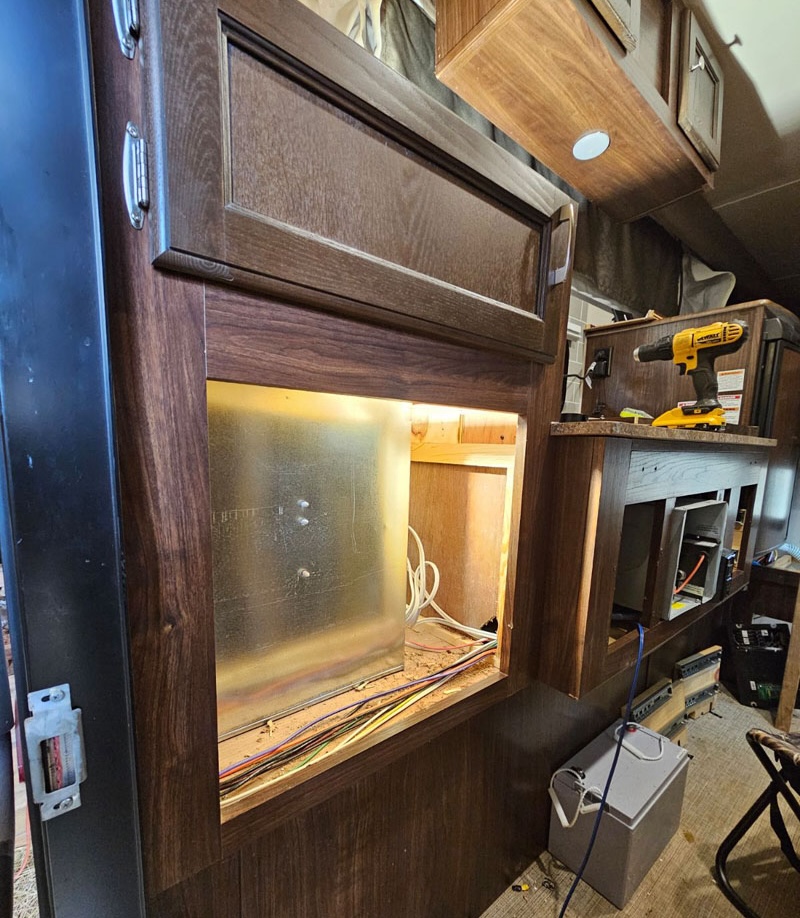

While disassembling the cabinet surrounding the propane cubby to access the roof lift actuator, I discovered that there was significant wasted space. I removed the panel that held the Rieco-Titan switch, DC disconnect, and water heater control.

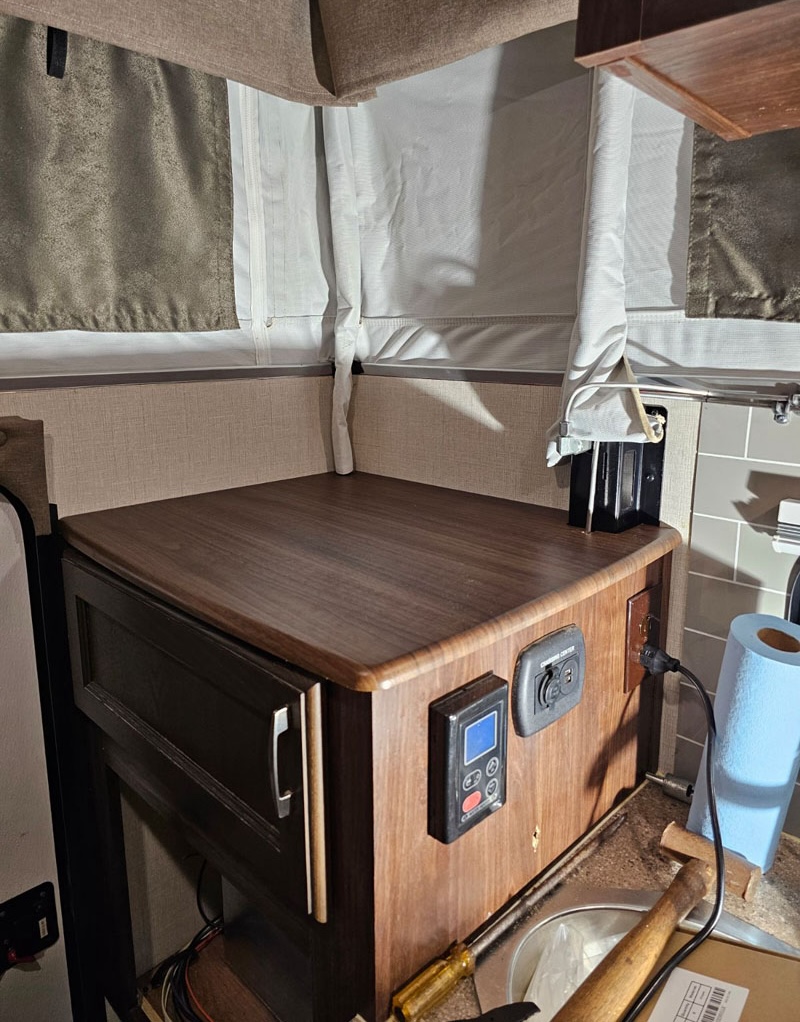

Above: Water heater’s new location
I moved the water heater control up near the charging center. I moved the DC disconnect to the battery storage wall. The roof lift switches were removed permanently. After measuring, I decided that four bottles of wine could fit next to the sink cabinet. The area in front of the propane would make quick and easy access for frequently used items.
I framed the area with 1-by white pine to cover wires and to make the shelf flush with the opening. If you don’t know it, 1by is a carpenter’s term. It means 1 inch thick by any width. Some will say 2 bys, meaning 2×4, 2×6 etc. I used that term because some pieces had to be ripped an odd width to level the floor of the cabinet space.

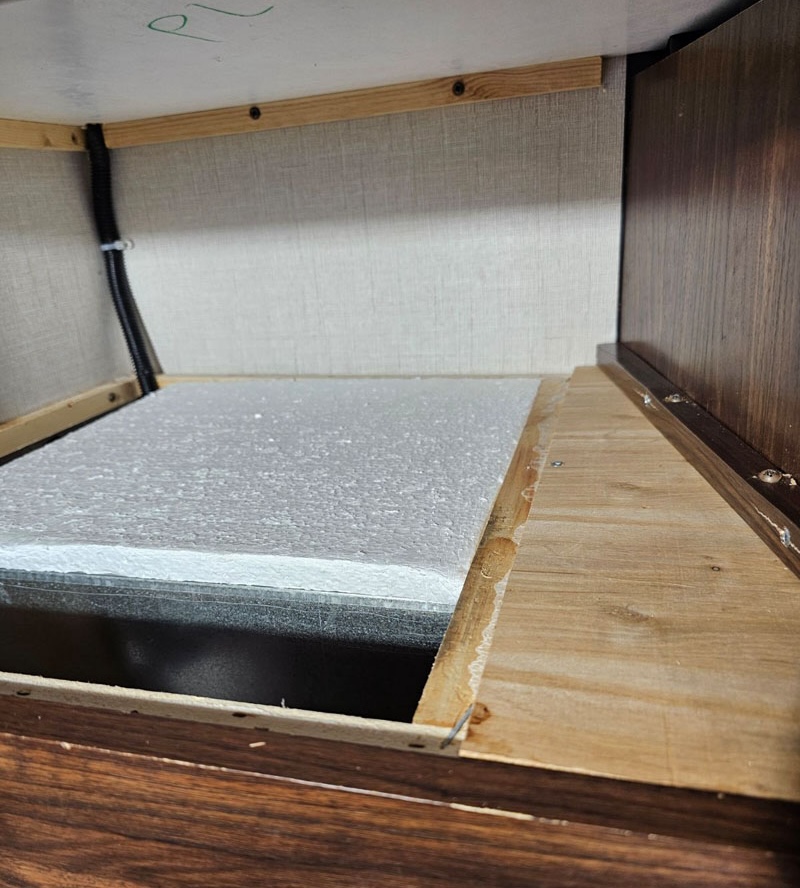

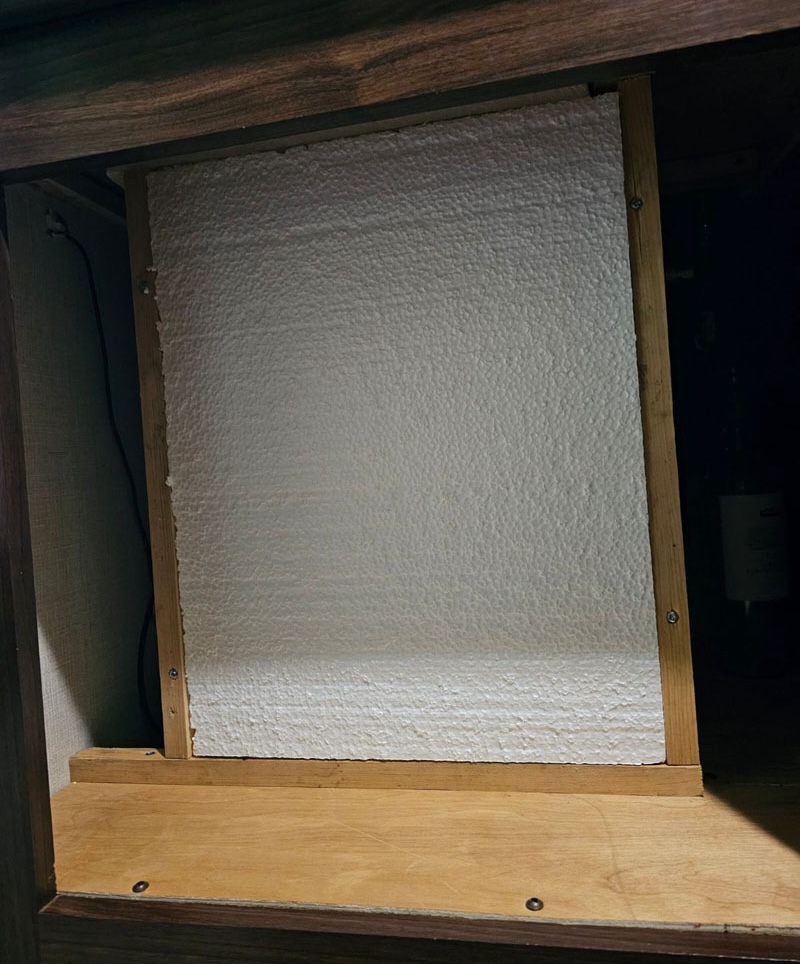

I placed 3/4 inch foam on top of the propane cubby and on the wall facing the opening. I did this because of condensation here in Georgia. The camper must be kept in a shaded area.

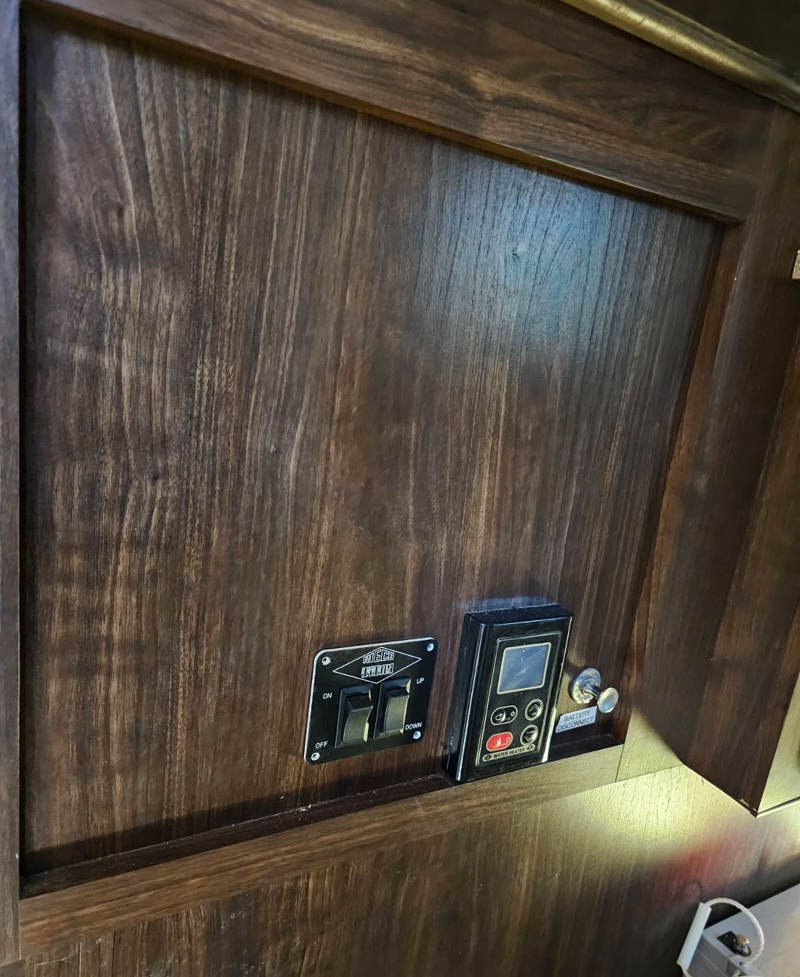

I used 1/4 inch luan plywood for the shelves and walls. I reused the original panel to cover the wires in the sink wall. I stained it with dark walnut and finished it with satin polyurethane.

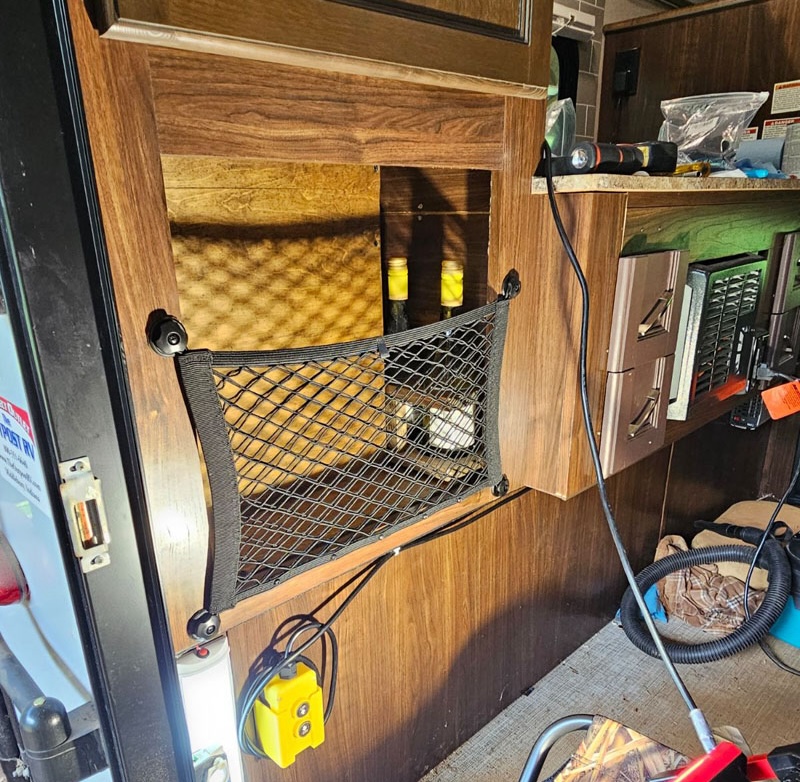

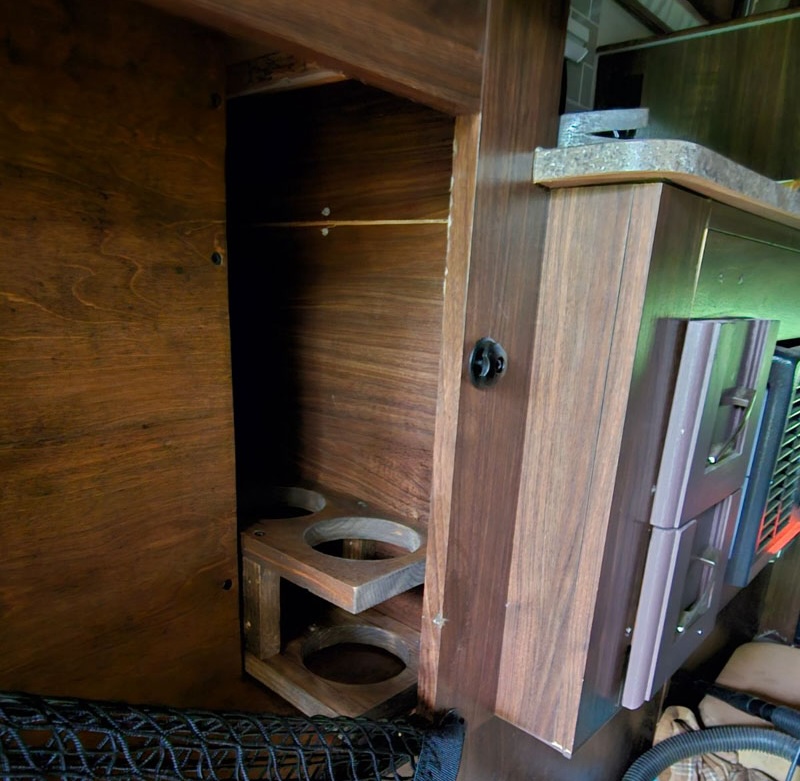

I used a 3.5-inch hole saw to build the wine rack openings. I bought two cargo nets with pouches; one to use on the front of the opening and the other for in the bathroom. At this time, I installed an LED light on the lower wall next to the door. I disliked having to enter the camper in the dark, trying to find a ceiling light. The ceiling light wires were exposed when I removed the panel and I tied into them.
I am very pleased to be able to transport wine securely and to have the additional space. It has worked well.
Materials Used:
1″ white pine, various sizes. I had scraps I used. Probably about $10 at Home Depot.
3.5″ hole saw at Home Depot $28.
Stain at Home Depot $5
Polyurethane at Home Depot $12
Cargo nets at Amazon $13.51 [Prime Day]
It took me 10 hours to complete this modification and cost me $69.
